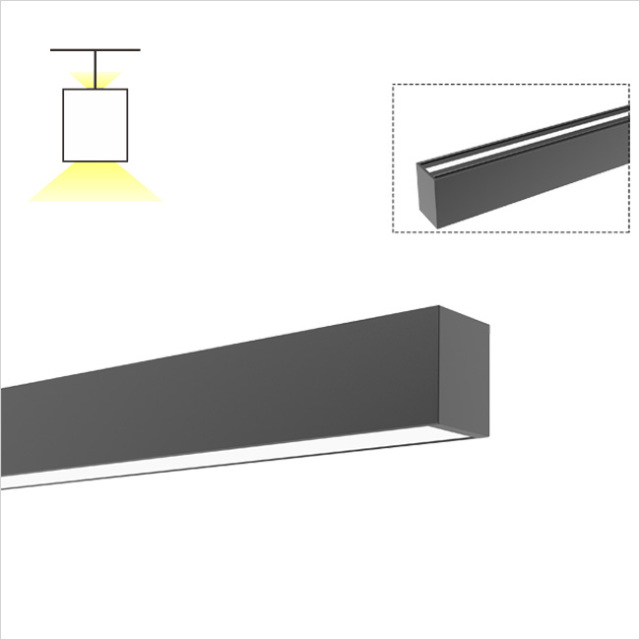

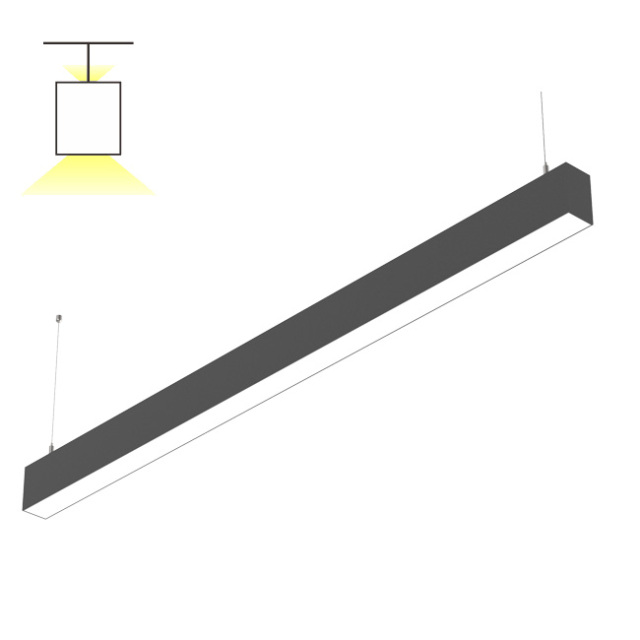

S50U-MP Up&Down LED linear light

  • 20W / 40W / 50W / 60W / 80W
  • Micro Prismatic
  • UGR19
  • Efficiency(two versions):100LM/W / 130LM/W
  • Direct
  • Direct/indirect
  • ON-OFF / TRAIC / 1-10V Dim / DALI DT6,DT8 Dim
  • Pendant / Surface Mounted / Wall / Trimless Recessed / Track
  • CCT:2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
  • DIP Switch:3000K/4000K/6500K

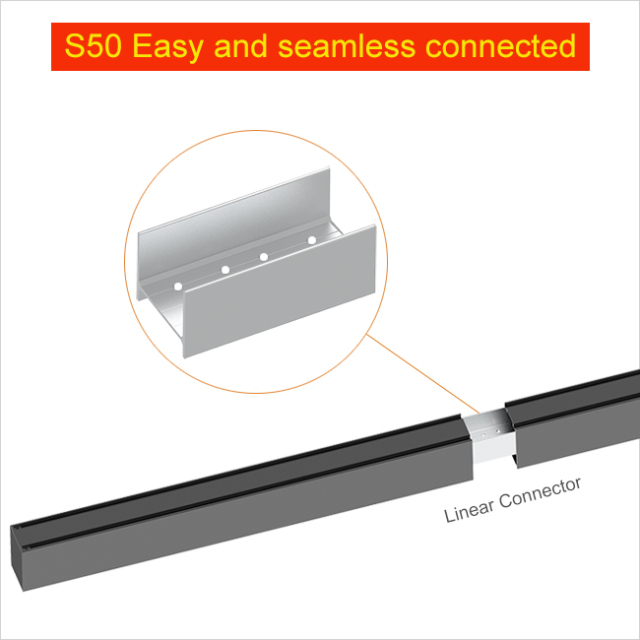

  • Corner module of S50 Linear system L T X Y efficient seamless splicing

Desciption

Item S50U-20W-0600MP S50U-40W-1200MP S50U-50W-1500MP S50U-60W-1800MP S50U-80W-2400MP
Power (W) Direct:14W
Indirect:6W
Direct:28W
Indirect:12W
Direct:35W
Indirect:15W
Direct:42W
Indirect:18W
Direct:56W
Indirect:24W
Input Voltage (V) 220-240V 220-240V 220-240V 220-240V 220-240V
Freqency (Hz) 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Power Factor >0.90 >0.95 >0.95 >0.95 >0.95
LED Type 2835 2835 2835 2835 2835
Lumen 2000lm / 2600lm 4000lm / 5200lm 5000lm / 6500lm 6000lm / 7800lm 8000lm / 10400lm
Efficiency 100lm/W
130lm/W
100lm/W
130lm/W
100lm/W
130lm/W
100lm/W
130lm/W
100lm/W
130lm/W
CCT 2700-6500K 2700-6500K 2700-6500K 2700-6500K 2700-6500K
CRI 83Ra 83Ra 83Ra 83Ra 83Ra
Beam Angle 90° / 110° 90° / 110° 90° / 110° 90° / 110° 90° / 110°
Beam Characteristic Direct / indirect Direct / indirect Direct / indirect Direct / indirect Direct / indirect
Type of protection IP20 IP20 IP20 IP20 IP20
Working Temp -2035 -2035 -2035 -2035 -2035
Warranty 5 years 5 years 5 years 5 years 5 years
Storage Temp -4085 -4085 -4085 -4085 -4085
Housing color Black
White
Sliver
Black
White
Sliver
Black
White
Sliver
Black
White
Sliver
Black
White
Sliver
Dimension(mm) 602*50*75 1200*50*75 1500*50*75 1800*50*75 2400*50*75
Installation Pendant / Wall

Module:S50-T
power:12W
Input Voltage:220-240V
Freqency:50/60Hz
Efficiency:100lm/W / 130lm/W
CCT:2700-6500K
CRI:83Ra
Housing Color:Black / White /Sliver
Warranty:5years


Module:S50-X
power:14W
Input Voltage:220-240V
Freqency:50/60Hz
Efficiency:100lm/W / 130lm/W
CCT:2700-6500K
CRI:83Ra
Housing Color:Black / White /Sliver
Warranty:5years

Module:S50-L
power:8W
Input Voltage:220-240V
Freqency:50/60Hz
Efficiency:100lm/W / 130lm/W
CCT:2700-6500K
CRI:83Ra
Housing Color:Black / White /Sliver
Warranty:5years


Module:S50-Y
power:12W
Input Voltage:220-240V
Freqency:50/60Hz
Efficiency:100lm/W / 130lm/W
CCT:2700-6500K
CRI:83Ra
Housing Color:Black / White /Sliver
Warranty:5years
