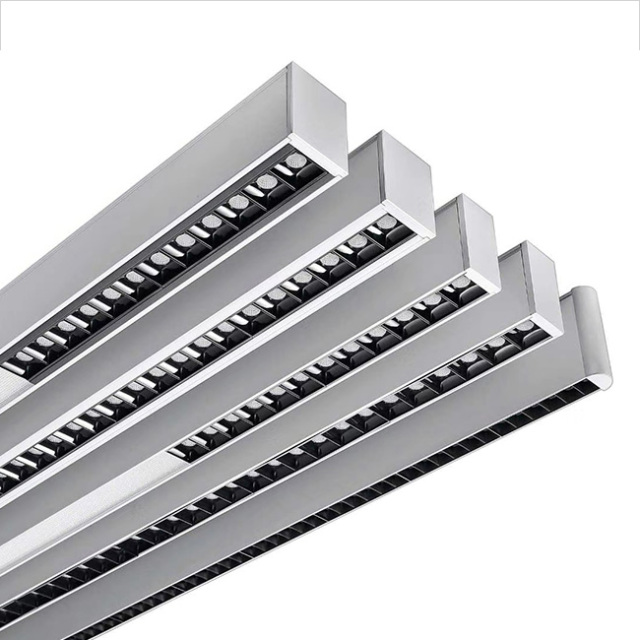

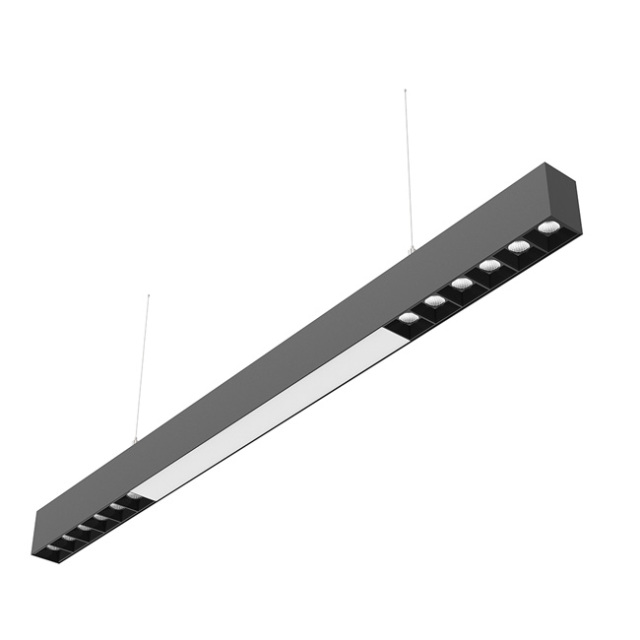

Refletor+Micro Prismatic Combination LED Linear light

Name: Refletor+Micro Prismatic Combination LED Linear light
Brand: Hiled-Lighting
Availability: InStock
Rating: 5 (1 reviews)

20W / 40W / 50W / 60W / 80W
Refletor+Micro Prismatic Combination
UGR19
Efficiency(two versions)：140LM/W
Direct
Direct/indirect
ON-OFF / TRAIC / 1-10V Dim / DALI DT6,DT8 Dim
Pendant / Surface Mounted / Wall / Trimless Recessed / Track
CCT：2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
DIP Switch：3000K/4000K/6500K

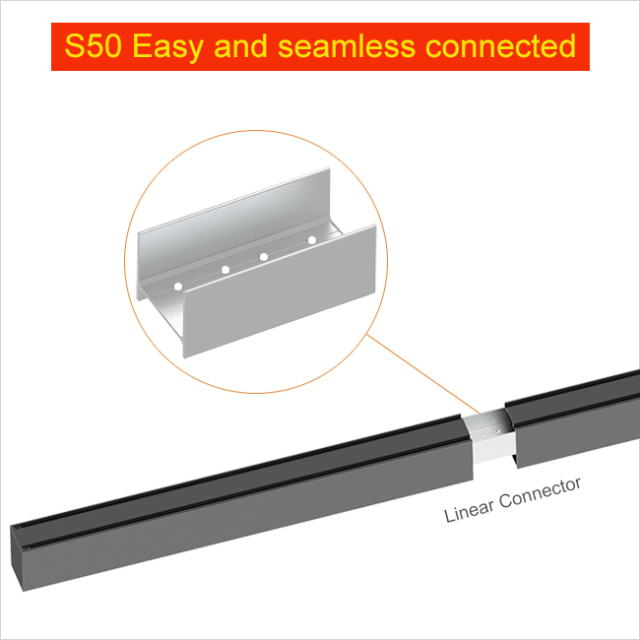

Corner module of S50 Linear system L T X Y efficient seamless splicing

Get A Quote

Desciption

Model	Size(mm)	Wattage	Efficacy	CCT	UGR	CRI	Shell color
S50-30W-1125PL	11255075mm	30W	140lm/W	3000K 4000K 6500K	<19	Ra>80	White Black sliver
S50-38W-1405PL	14055075mm	38W	140lm/W	3000K 4000K 6500K	<19	Ra>80	White Black sliver
S50-45W-1685PL	16855075mm	45W	140lm/W	3000K 4000K 6500K	<19	Ra>80	White Black sliver
S50-60W-2245PL	22455075mm	60W	140lm/W	3000K 4000K 6500K	<19	Ra>80	White Black sliver

Corner Module of S50 Linear System

Module：S50-T
power：12W
Input Voltage：220-240V
Freqency：50/60Hz
Efficiency：100lm/W / 130lm/W
CCT：2700-6500K
CRI：83Ra
Housing Color：Black / White /Sliver
Warranty：5years

Module：S50-X
power：14W
Input Voltage：220-240V
Freqency：50/60Hz
Efficiency：100lm/W / 130lm/W
CCT：2700-6500K
CRI：83Ra
Housing Color：Black / White /Sliver
Warranty：5years

Module：S50-L
power：8W
Input Voltage：220-240V
Freqency：50/60Hz
Efficiency：100lm/W / 130lm/W
CCT：2700-6500K
CRI：83Ra
Housing Color：Black / White /Sliver
Warranty：5years

Module：S50-Y
power：12W
Input Voltage：220-240V
Freqency：50/60Hz
Efficiency：100lm/W / 130lm/W
CCT：2700-6500K
CRI：83Ra
Housing Color：Black / White /Sliver
Warranty：5years
